Single Ear Clamp 706R

You are here : Home » Products » Hose Clamps »

Product Description

Specifications

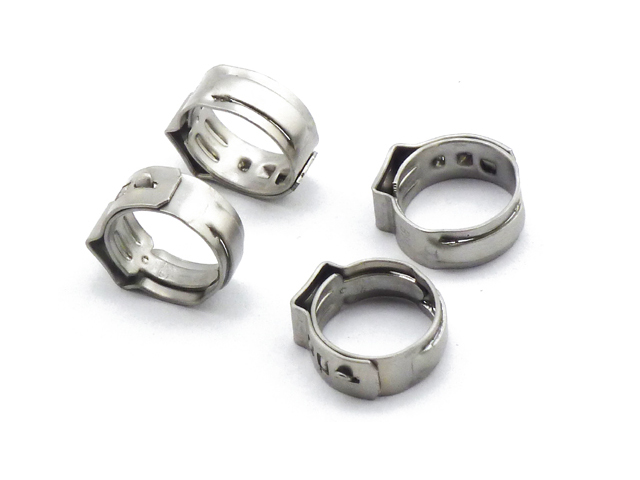

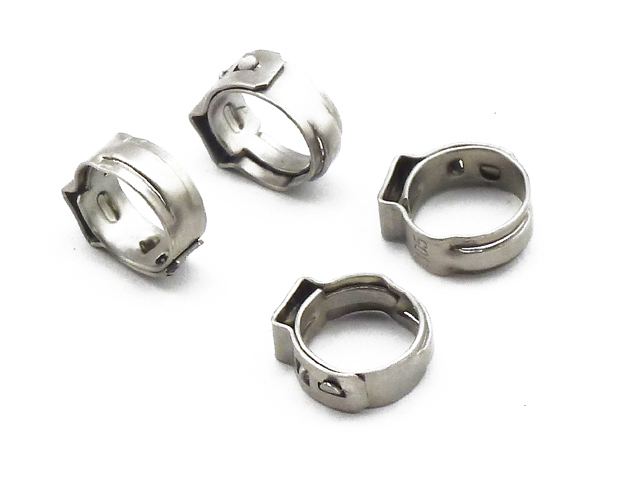

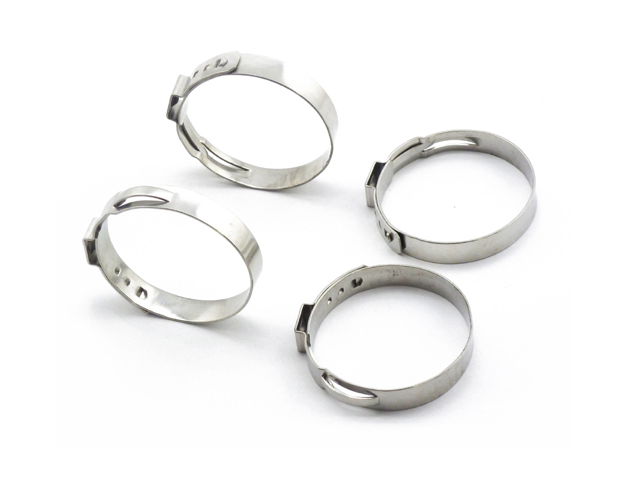

Single Ear Clamp
1.Free samples are available
2.Competed price

1. Single Ear Clamp

Narrow Band: concentrates transmission of clamping force, less weight
Stepless over 360°: uniform compression or uniform surface pressure
Clamp ear: compensates for component tolerance, adjustable surface pressure
Dimple: increases clamping force, spring-effect compensates for changes in diameter due to thermal expansion
Specially formed strip edges: reduced risk of damage to parts being clamped

2.PRODUCT DESCRIPTION

Band width 7 mm, thickness 0.6 mm (706R)
Ref. No.	Ear width inside (mm)	Size range (mm)
011.9-706R 8	8	9.4 – 11.9
012.3-706R 8	8	9.8 – 12.3
012.8-706R 8	8	10.3 – 12.8
013.3-706R 8	8	10.8 – 13.3
013.8-706R 8	8	11.3 – 13.8
014.0-706R 8	8	11.5 – 14
014.2-706R 8	8	11.7 – 14.2
014.5-706R 8	8	12 – 14.5
014.8-706R 8	8	12.3 – 14.8
015.3-706R 8	8	12.8 – 15.3
015.7-706R 8	8	13.2 – 15.7
016.0-706R 8	8	13.5 – 16
016.2-706R 8	8	13.7 – 16.2
016.6-706R 8	8	14.1 – 16.6
016.8-706R 8	8	14.3 – 16.8
017.0-706R 8	8	14.5 – 17
017.5-706R 8	8	15 – 17.5
017.8-706R 10	10	14.6 – 17.8
018.0-706R 10	10	14.8 – 18
018.5-706R 10	10	15.3 – 18.5
019.2-706R 10	10	16 – 19.2
019.8-706R 10	10	16.6 – 19.8
021.0-706R 10	10	17.8 – 21
022.6-706R 10	10	19.4 – 22.6
023.5-706R 10	10	20.3 – 23.5
024.1-706R 10	10	20.9 – 24.1
025.6-706R 10	10	22.4 – 25.6
027.1-706R 10	10	23.9 – 27.1
028.6-706R 10	10	25.4 – 28.6
030.1-706R 10	10	26.9 – 30.1
030.8-706R 10	10	27.6 – 30.8
031.6-706R 10	10	28.4 – 31.6
033.1-706R 10	10	29.9 – 33.1
034.6-706R 10	10	31.4 – 34.6
036.1-706R 10	10	32.9 – 36.1
037.6-706R 10	10	34.4 – 37.6
038.1-706R 10	10	34.9 – 38.1
039.6-706R 10	10	36.4 – 39.6
042.5-706R 10	10	39.3–42.5
044.0-706R 10	10	40.8–44
045.5-706R 10	10	42.3–45.5
047.0-706R 10	10	43.8–47
048.5-706R 10	10	45.3–48.5
050.0-706R 10	10	46.8–50
051.5-706R 10	10	48.3–51.5
053.0-706R 10	10	49.8–53
054.5-706R 10	10	51.3–54.5
056.0-706R 10	10	52.8–56
057.5-706R 10	10	54.3–57.5
059.0-706R 10	10	55.8–59
060.5-706R 10	10	57.3–60.5
062.0-706R 10	10	58.8–62
063.5-706R 10	10	60.3–63.5
065.0-706R 10	10	61.8–65
066.5-706R 10	10	63.3–66.5
068.0-706R 10	10	64.8–68
069.5-706R 10	10	66.3–69.5
071.0-706R 10	10	67.8–71
072.5-706R 10	10	69.3–72.5
074.0-706R 10	10	70.8–74
075.5-706R 10	10	72.3–75.5
077.0-706R 10	10	73.8–77
078.5-706R 10	10	75.3–78.5
080.0-706R 10	10	76.8–80
081.5-706R 10	10	78.3–81.5
083.0-706R 10	10	79.8–83
084.5-706R 10	10	81.3–84.5
086.0-706R 10	10	82.8–86
087.5-706R 10	10	84.3–87.5
089.0-706R 10	10	85.8–89
090.5-706R 10	10	87.3–90.5
092.0-706R 10	10	88.8–92
093.5-706R 10	10	90.3–93.5
095.0-706R 10	10	91.8–95
096.5-706R 10	10	93.3–96.5
098.0-706R 10	10	94.8–98
099.5-706R 10	10	96.3–99.5
101.0-706R 10	10	97.8–101
102.5-706R 10	10	99.3–102.5
104.0-706R 10	10	100.8–104
105.5-706R 10	10	102.3–105.5
107.0-706R 10	10	103.8–107
108.5-706R 10	10	105.3–108.5
110.0-706R 10	10	106.8–110
111.5-706R 10	10	108.3–111.5
113.0-706R 10	10	109.8–113
114.5-706R 10	10	111.3–114.5
116.0-706R 10	10	112.8–116
117.5-706R 10	10	114.3–117.5
119.0-706R 10	10	115.8–119

3.PRODUCT APPLICATION

4. Packing methods we can offer

5. Test equipments

Salt Spray Testing Machine

Spectrum Analysis Machine
