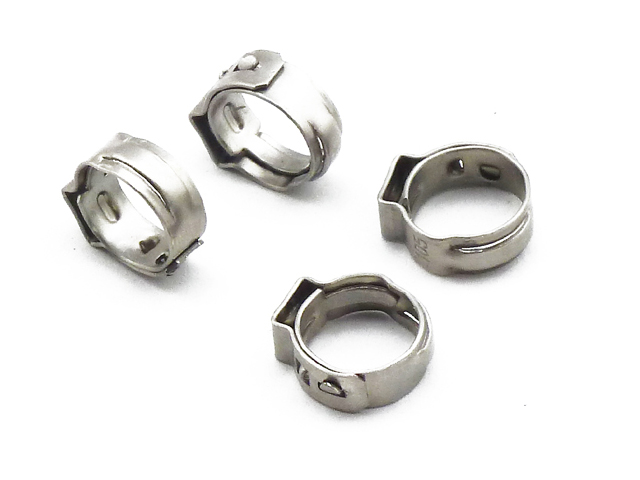

Single Ear Clamp 505R
Product Description
1.Free samples are available
2.Competed price
Specifications
Single Ear Clamp1.Free samples are available
2.Competed price
1. Single Ear Clamp
- Narrow Band: concentrates transmission of clamping force, less weight
- Stepless over 360°: uniform compression or uniform surface pressure
- Clamp ear: compensates for component tolerance, adjustable surface pressure
- Dimple: increases clamping force, spring-effect compensates for changes in diameter due to thermal expansion
- Specially formed strip edges: reduced risk of damage to parts being clamped
2.PRODUCT DESCRIPTION
| Band width 5 mm, thickness 0.5 mm(505R) | ||
| Ref. No. | Ear width inside (mm) |
Size range (mm) |
| 006.5-505R | 4 | 5.3 – 6.5 |
| 007.0-505R | 4 | 5.8 – 7 |
| 008.0-505R | 4 | 6.8 – 8 |
| 008.7-505R | 5.5 | 7 – 8.7 |
| 009.0-505R | 5.5 | 7.3 – 9 |
| 009.5-505R | 5.5 | 7.8 – 9.5 |
| 010.0-505R | 5.5 | 8.3 – 10 |
| 010.5-505R | 5.5 | 8.8 – 10.5 |
| 010.9-505R | 5.5 | 9.2 – 10.9 |
| 011.3-505R | 5.5 | 9.6 – 11.3 |
| 011.8-505R | 5.5 | 10.1 – 11.8 |
3.PRODUCT APPLICATION
4. Packing methods we can offer
5. Test equipments
Salt Spray Testing Machine
Spectrum Analysis Machine
