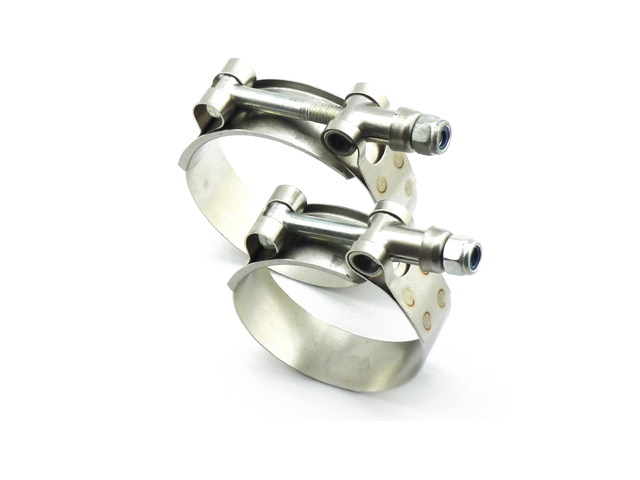

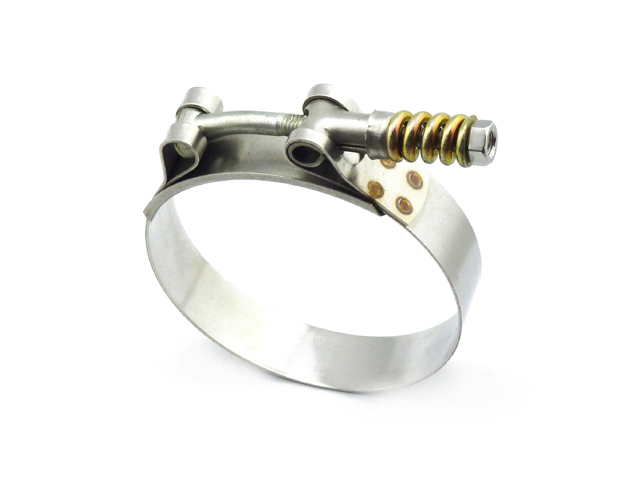

Product Description

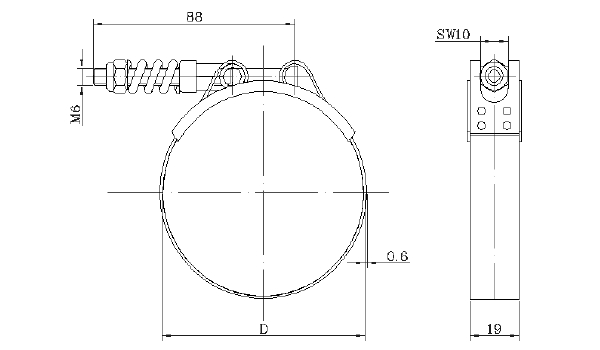

1.bandwidth 19mm/ (3/4'')
2.Material; w1& w2&w3&w4 series

W1: Galvanized steel
W2: Screw is galvanized steel, others are AISI series stainless steel
W4: AISI series stainless steel

3. Installation Torque:  75 in.-lbs.; 8.5 Nm.

SIZING / CLAMPING RANGE CHART



SAE Sizes	Part No.	Min. Dia. (in.)	Max. Dia. (in.)	Min. Dia. (mm)	Max. Dia. (mm)
70	30030 0306	3  1/16	3  3/8	77.8	85.7
86	30030 0356	3  9/16	3  7/8	90.5	98.4
102	30030 0406	4  1/16	4  3/8	103.2	111.1
118	30030 0456	4  9/16	4  7/8	115.9	123.8
