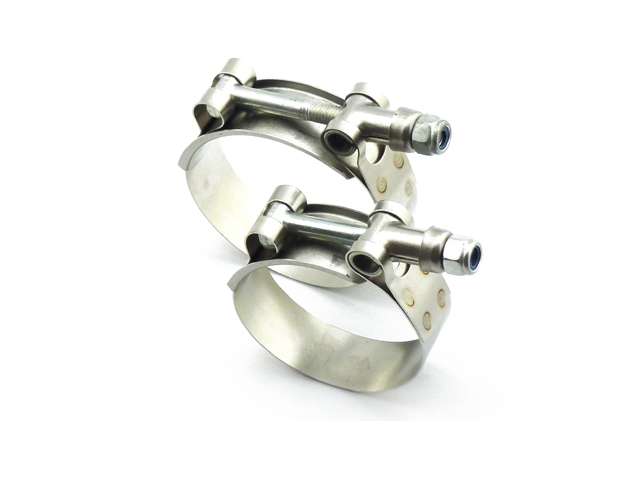

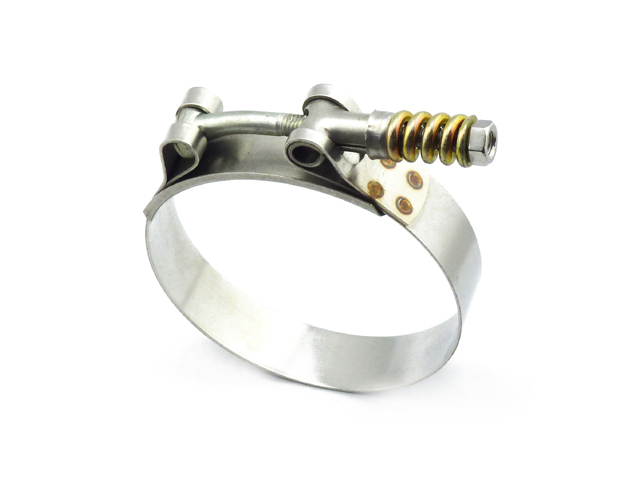

Product Description

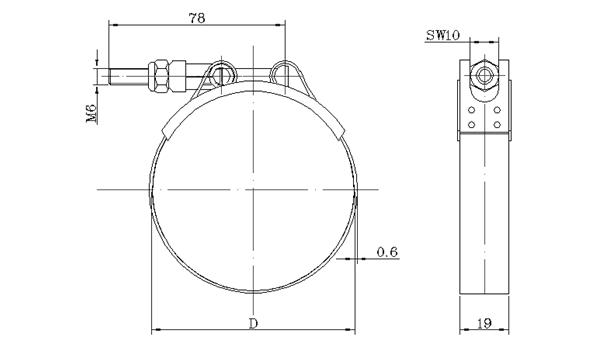

1.bandwidth 19mm/ (3/4'')
2.Material; w1& w2&w3&w4 series

W1: Galvanized steel
W2: Screw is galvanized steel, others are AISI series stainless steel
W4: AISI series stainless steel

3. Installation Torque:  75 in.-lbs.; 8.5 Nm.

SIZING / CLAMPING RANGE CHART

SAE Sizes	Part No.	Min. Dia. (in.)	Max. Dia. (in.)	Min. Dia. (mm)	Max. Dia. (mm)
---	30011 0138	1  3/8	1  9/16	35.1	38.6
---	30011 0150	1  1/2	1  5/8	38.1	41.7
---	30011 0163	1  5/8	1  7/8	41.4	46.0
28	30011 0175	1  3/4	2	44.5	50.8
32	30011 0188	1  7/8	2  3/16	47.8	55.6
36	30011 0200	2	2  5/16	50.8	58.7
40	30011 0213	2  1/8	2  7/16	54.1	62.0
44	30011 0225	2  1/4	2  9/16	57.2	65.0
48	30011 0238	2  3/8	2  11/16	60.5	68.3
52	30011 0250	2  1/2	2  13/16	63.5	71.4
56	30011 0263	2  5/8	2  15/16	66.8	74.7
60	30011 0275	2  3/4	3  1/16	69.9	77.7
64	30011 0288	2  7/8	3  3/16	73.2	81.0
68	30011 0300	3	3  5/16	76.2	84.1
72	30011 0313	3  1/8	3  7/16	79.5	87.4
76	30011 0325	3  1/4	3  9/16	82.6	90.4
80	30011 0338	3  3/8	3  11/16	85.9	93.7
84	30011 0350	3  1/2	3  13/16	88.9	96.8
88	30011 0363	3  5/8	3  15/16	92.2	100.1
92	30011 0375	3  3/4	4  1/16	95.3	103.1
100	30011 0400	4	4  5/16	101.6	109.5
108	30011 0425	4  1/4	4  9/16	108.0	115.8
116	30011 0450	4  1/2	4  13/16	114.3	122.2
124	30011 0475	4  3/4	5  1/16	120.7	128.5
132	30011 0500	5	5  5/16	127.0	134.9
140	30011 0525	5  1/4	5  9/16	133.4	141.2
148	30011 0550	5  1/2	5  13/16	139.7	147.6
156	30011 0575	5  3/4	6  1/16	146.1	153.9
164	30011 0600	6	6  5/16	152.4	160.3
172	30011 0625	6  1/4	6  9/16	158.8	166.6
180	30011 0650	6  1/2	6  13/16	165.1	173.0
188	30011 0675	6  3/4	7  1/16	171.5	179.3
196	30011 0700	7	7  5/16	177.8	185.7
204	30011 0725	7  1/4	7  9/16	184.2	192.0
212	30011 0750	7  1/2	7  13/16	190.5	198.4
220	30011 0775	7  3/4	8  1/16	196.9	204.7
228	30011 0800	8	8  5/16	203.2	211.1
236	30011 0825	8  1/4	8  9/16	209.6	217.4
244	30011 0850	8  1/2	8  13/16	215.9	223.8
