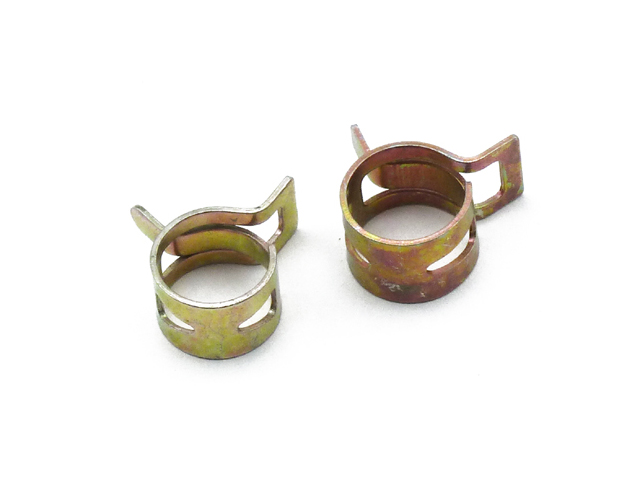

Product Description

1.SPECIFICATIONS
1,material : 65Mn ,zinc plated
2,band width : 6,8,10,12,15mm
3, size : 5-50 mm



2.PRODUCT DESCRIPTION





SIZING / CLAMPING RANGE CHART

SAE Sizes	Part No.	b (mm)	t (mm)	CLAMPING RANGE
				inch		mm
				Min	Max	Min	Max
7.0	204 000070	6.0	0.6	0.30	0.33	7.6	8.3
8.0	204 000080			0.34	0.37	8.6	9.5
8.5	204 000085	8.0		0.36	0.40	9.2	10.2
9.0	204 000090			0.38	0.42	9.7	10.7
9.5	204 000095		0.8	0.41	0.44	10.3	11.3
10.0	204 000100			0.43	0.47	10.8	11.9
10.5	204 000105			0.45	0.49	11.4	12.5
11.0	204 000110			0.47	0.52	11.9	13.1
11.5	204 000115			0.49	0.54	12.4	13.7
12.0	204 000120			0.51	0.56	13.0	14.3
12.5	204 000125			0.53	0.59	13.5	14.9
13.0	204 000130			0.55	0.61	14.0	15.5
13.5	204 000135			0.57	0.63	14.6	16.1
14.0	204 000140	10.0		0.59	0.66	15.1	16.7
14.5	204 000145			0.62	0.68	15.7	17.3
15.0	204 000150		1.0	0.64	0.70	16.2	17.9
15.5	204 000155			0.66	0.72	16.7	18.4
16.0	204 000160	12.0		0.68	0.75	17.3	19.1
16.5	204 000165			0.70	0.78	17.9	19.7
17.0	204 000170			0.72	0.80	18.4	20.2
17.5	204 000175			0.74	0.82	18.9	20.9
18.0	204 000180			0.76	0.84	19.4	21.4
18.5	204 000185			0.79	0.87	20.0	22.1
19.0	204 000190			0.81	0.89	20.5	22.6
19.5	204 000195			0.83	0.92	21.1	23.3
20.0	204 000200			0.85	0.94	21.6	23.8
20.5	204 000205			0.87	0.96	22.2	24.4
21.0	204 000210			0.89	0.98	22.7	25.0
23.0	204 000230		1.2	0.98	1.08	24.8	27.4
24.0	204 000240			1.02	1.12	25.9	28.5
25.0	204 000250			1.06	1.17	27.0	29.8



3.PRODUCT  APPLICATION
