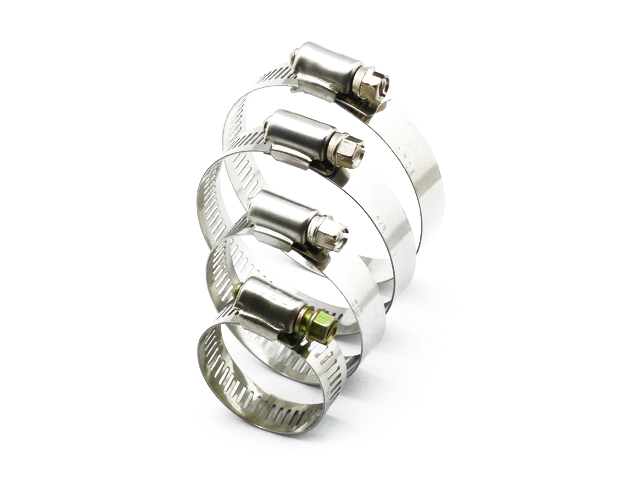

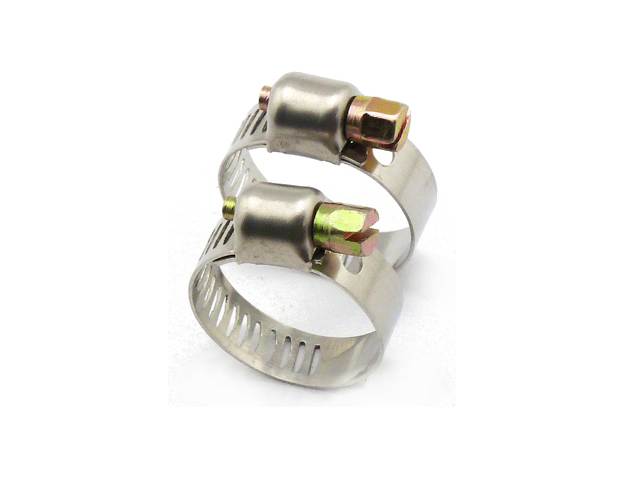

Product Description

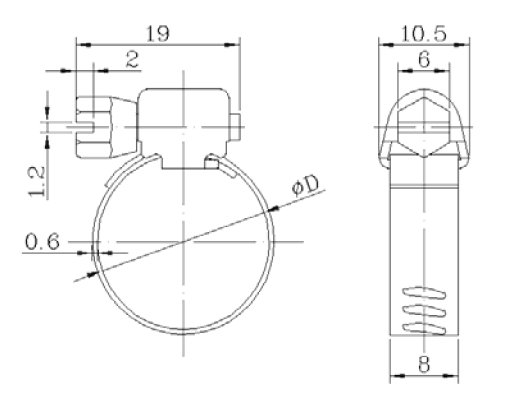

1.bandwidth 8mm/ 5/16''
2.Material; w1& w2&w3&w4 series

W1: Galvanized steel
W2: Screw is galvanized steel, others are AISI series stainless steel
W4: AISI series stainless steel

3. Installation Torque: 10 - 15 in.-lbs.; 1.1 - 1.7 Nm

SIZING / CLAMPING RANGE CHART

SAE Sizes	Part No.	Min. Dia. (in.)	Max. Dia. (in.)	Min. Dia. (mm)	Max. Dia. (mm)	Fits Hose I.D. Min.(in.)	Fits Hose I.D. Max. (in.)
04	6204(1)	1/4	5/8	6	16	1/8	5/16
05	62P05	1/4	11/16	7	17	1/8	3/8
06	6206(2)	5/16	7/8	8	22	1/4	7/16
08	62P08	3/8	1	10	25	5/16	1/2
10	62P10	3/8	1 1/16	10	27	5/16	5/8
12	62P12	1/2	1 1/4	13	32	5/8	3/4
16	62P16	1/2	1 1/2	13	38	5/8	1
20	62P20	3/4	1 3/4	19	44	1	1 1/4
24	62P24	1	2	26	51	1 1/4	1 1/2
28	62P28	1 1/4	2 1/4	32	57	1 1/2	1 3/4
30	62P30	1 3/8	2 3/8	35	60	1 5/8	1 7/8
32	62P32	1 1/2	2 1/2	38	63	1 3/4	2
36	62P36	1 3/4	2 3/4	45	70	2	2 1/4
44	62P44	2 1/4	3 1/4	57	82	2 1/4	2 3/4
48	62P48	2 1/2	3 1/2	64	89	2 1/2	3
